HEAT TRACE TECHNOLOGY ®

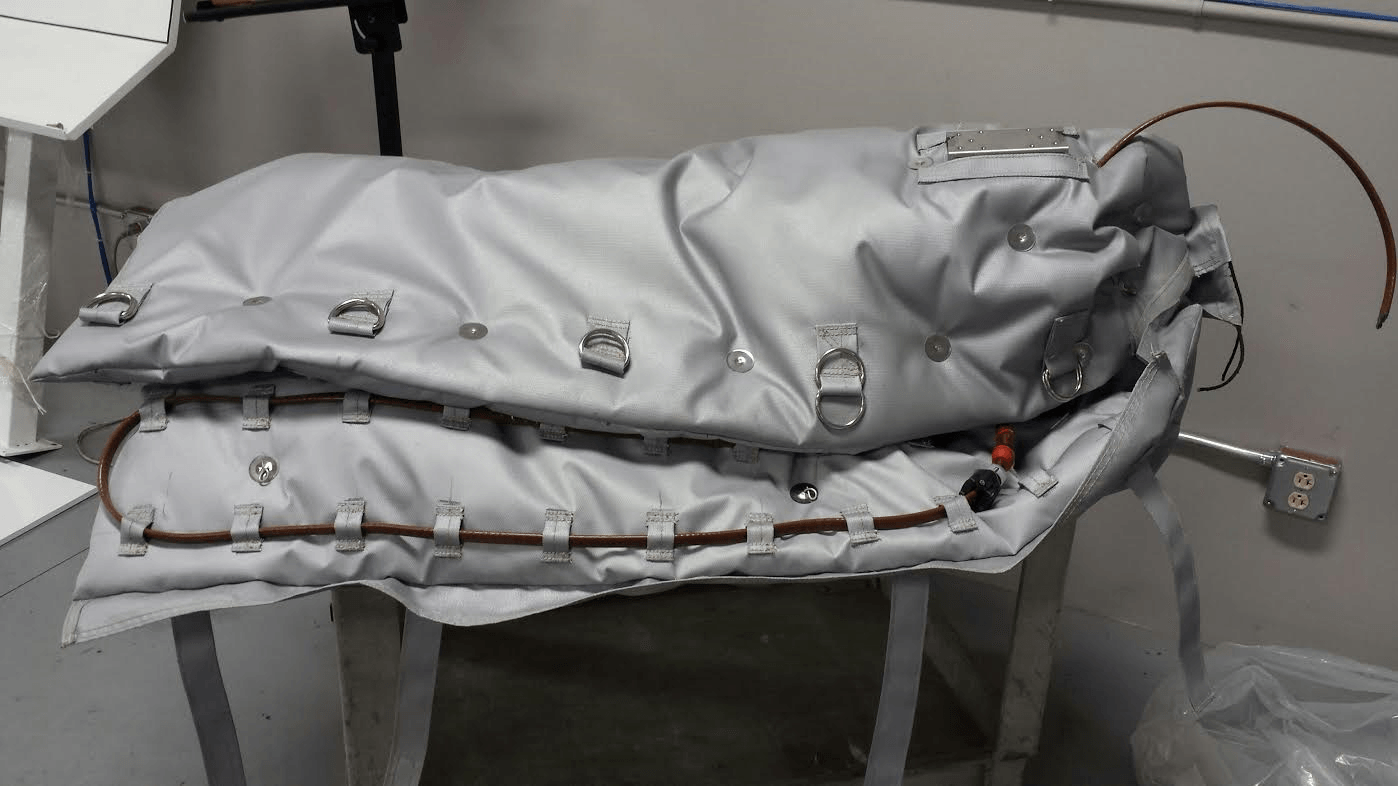

ATTACHED HEAT TRACE TO THE BLANKETS

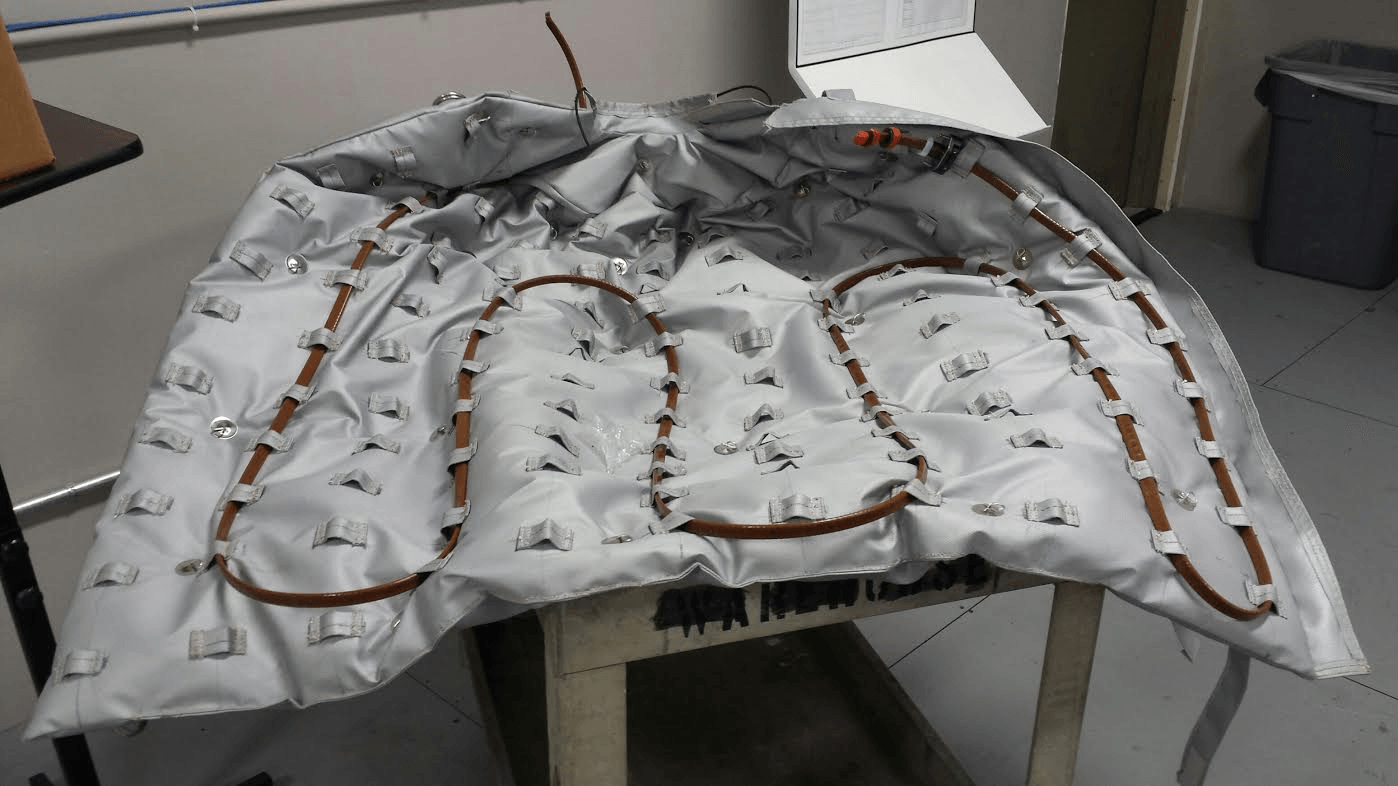

The sewn-seam removable insulation blankets will come complete with an attached electric heat tracing circuit. The cable will be attached to the blanket by weaving the cable through loops on the inner portion of the blanket. The heat trace power connection and end seal kits will also be mounted to the insulation blanket to make one complete piece for removal.
Temperature Rating for Removable Blankets Materials
Fabrics:
FCF-Teflon 16.5 oz. 600 °F
PTFE- Teflon 16.5 oz. 550 °F
15.0 oz. Silicone Impregnated- Fiberglass 500 °F
17.0 oz. Silicone Impregnated- Fiberglass 500 °F
17.5 oz. Silicone Impregnated- Fiberglass 500 °F
2025-9383 Fiberglass Fabric 1000 °F
2025 Fiberglass Fabric Red 1100 °F
Laminated Aluminum Foil Fiberglass 500 °F
Silica Fabric 1800 °F
Insulation:
Fiberglass Mat 1200 °F
Pyrogel XT-E 1200 °F
Silica Mat 1800 °F
Ceramic Fiber Insu- 2300 °F
Armaflex 295 °F
Mesh Foil:
Monel Knitted Mesh 2000 °F
Inconel Knitted Mesh 2300 °F
304 SSteel Knitted Mesh 900 °F
321 SSteel Knitted Mesh 1200 °F
304 SSteel Knitted Foil 1500 °F
Inconel Foil 2150 °F
Velcro:
Hi-Air Brand Hook & Loop 350 °F
Hi-Garde Brand Hook & Loop 800 °F
Drawcords:
Teflon Impregnated Fiberglass 550*F
Nomex Glass Drawcord 900*F
SSteel Drawcord 1500*F
Sewing Thread:
Kevlar 380 °F
Nomex 700 °F
Teflon Impregnated Fiberglass 1000 °F
Kevlar SSteel 1000 °F
Fasteners:
304 SSteel D-Rings 1500 °F
304 SSteel Buckles 1500 °F
Quilting Pins 1500 °F
Lacing Anchors 1500 °F
SSteel Round Washers 1200 °F
